| Brand Name : | JUNHE |
| Model Number : | DSP T500 |
| Certification : | ISO9001 TS16949 SGS |
| Price : | Negotiable |
| Supply Ability : | 1 Set per Month |
| Delivery Time : | Three months after receipt of advance payment |

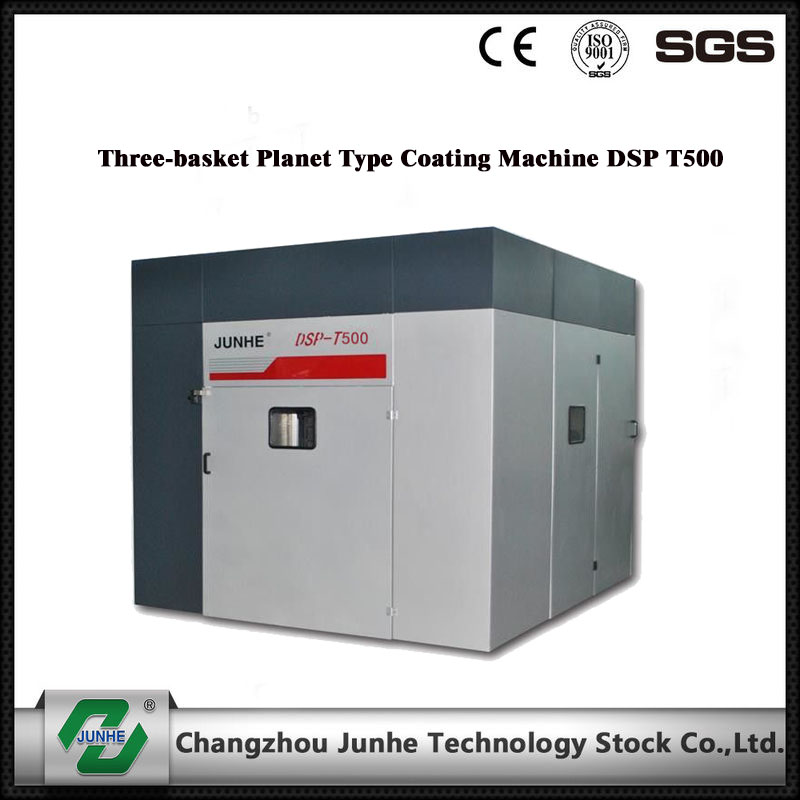

DSP T500 suitable for any kinds of zinc flake paints and related top coat, seal, coating.
Equipment main body:
1. Weighing loading system.
2. Dip-spin coating system.
3. Conveyor distributor.
4. Operation control system.
Features:
1. Basket planet type configuration, every time convert direction can realize the workpiece location swap, the qualified rate of blind hole workpieces is very high, full automatic design, efficient and energy saving.
2. Three-ball planetary centrifugal method, double-station six-basket interchange.
3. High centrifugal efficiency, uniform coating thickness, no countersunk effusion.
4. The coating qualification rate can reach more than 99%, which is 30% higher than the traditional equipment coating qualification rate.
5. Adopting the most advanced integrated control system, intelligent operating system, equipped with IoT communication port, can realize intelligent docking with other supporting equipment.
6. Remote online monitoring, fault rectification, process debugging, access to Junhe smart device cloud platform.
Main parameter:
| Max spinning speed | 0-300 | r/min |
| Max load of basket | 50*3 | kg |
| Shortest production rate | 180 | s |
| Max capacity | 1800 | kg/h |
| Suitable workpiece weight | 200-250 | L |
| Suitable workpiece length | ≤150 | mm |
|
|
